Descent Controllers

Originally designed as evacuation devices these devices lower the user to a fixed point directly below at a fixed speed of between 1.4 m/s and 2.0 m/second. Great fun to use but the landing position must be free from hazards. Certain units can be operated at an angle along a guide wire (Geronimo Lines) but again care must be taken in selection. Lifeline lengths vary from 20m up with the common lengths being no more than 60m.


Sauvmatic
Self-retracting lift

  • Centrifugal Speed Regulator.
  • Self-retracting cable.
  • 5mm diameter Galvanized cable fitted with rescue strap.
  • Stainless Steel cable on request.
  • Maximum load: 136kg.

Sauvmatic is a device designed to rapidly evacuate one or more people in succession, for example from cable cars, travelling gantry or crane cabins, industrial buildings, etc...

REF
CABLE
LENGTH
EVACUATION
SPEED
WIDTH
mm
HEIGHT
mm
THICKNESS
mm
WEIGHT
kg
AG 416
16 m
~1,20 m/s
490
228
120
14
AG 432
32 m
~1,20 m/s
535
286
157
23
AG 460
60 m
~1,20 m/s
600
346
180
44



Trolmatic
Inclined plane lift with manual recall (BCD)

  • Centrifugal Speed Regulator.
  • Manual rewinding.
  • 5mm diameter Galvanized cable with carabiner.
  • Maximum load: 136kg.
  • Evacuation cart and seat Ref AG300.
  • Rolling on 12mm diameter carrier cable, supplied on request.
  • Cart braked by hand-lever.
  • Individual seat fitted with safety belt.
  • Weight of cart + seat = 8kg.

Trolmatic is designed to evacuate on a carrier cable inclined at an angle between 30 and 60 degress. It is mainly used as a means of emergency evacuation for people working on oil derricks.

REF
CABLE
LENGTH
EVACUATION
SPEED
WIDTH
mm
HEIGHT
mm
THICKNESS
mm
WEIGHT
Kg
AG 350
50 m
~4 m/s
600
346
205
19
AG 360
60 m
~4 m/s
600
346
205
20
AG 380
80 m
~4 m/s
650
382
215
25
AG 399
100 m
~4 m/s
650
382
215
28

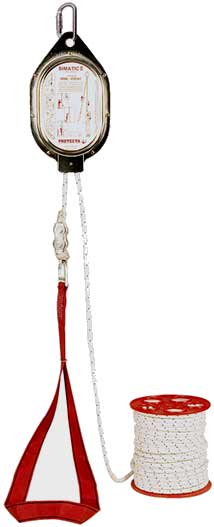

AG 152

Bimatic
Evacuation Device

Multiple person evacuation system operating by means of a friction brake suitable for up to 100m descents

AG620100

Manually Controlled
Evacuation Device

Single person evacuation device, suitable for any length of descent. Ideal for Tower Cranes etc.
